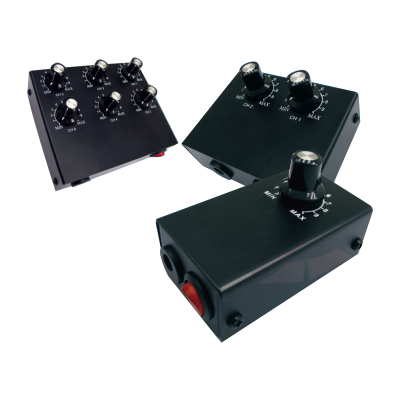

Constant Voltage Controllers
Product Features
- Lightweight and practical, emphasizing stable dimming. Compact and easy to install, stepless adjustment to any brightness.
- Excellent stability using regulated output. Noise and ripple coefficient < 1%, non-PWM control ensures no flickering.
- Affordable price.
Applications
- Compatible with various LED light sources for optoelectronics, LCD, connectors, plastics, metals, electronics, semiconductors, and personal computer industries.

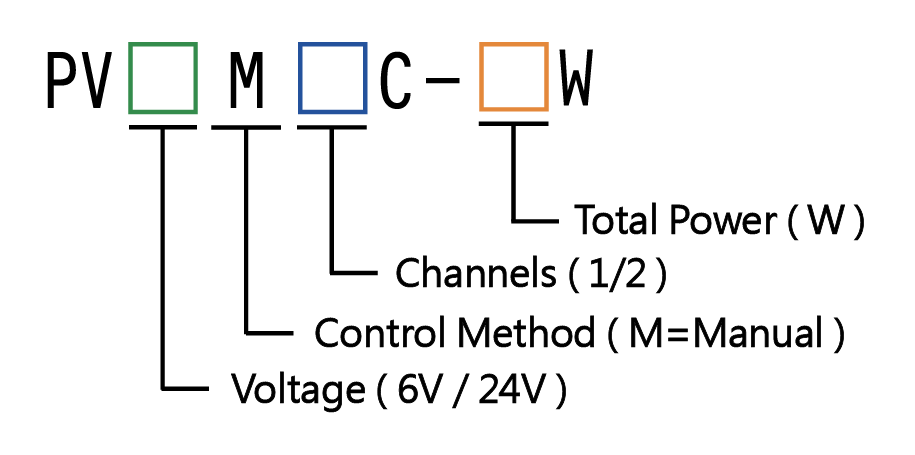

Model Description
Product Specification Table
| Model | Control Method | Channel Number | Output Voltage | Output Power | Output Current |
|---|---|---|---|---|---|
PV6M1C |
Manual VR Adjustment | 1 | DC 1.2~6V | 9W | 1.5A/CH |
PV12M1C |
Manual VR Adjustment | 1 | DC 1.2~6V | 15W | 1.5A/CH |
PV24M1C |
Manual VR Adjustment | 1 | DC 1.2~6V | 26W、36W | 1A/CH、1.5A/CH |
PV6M2C |
Manual VR Adjustment | 2 | DC 1.2~6V | 15W | 1.5A/CH，Total 2.6A |
PV12M2C |
Manual VR Adjustment | 2 | DC 1.2~6V | 28W | 1.5A/CH，Total 2.6A |
PV24M2C |
Manual VR Adjustment | 2 | DC 1.2~6V | 62W | 1.5A/CH，Total 2.6A |
PV6M4C |
Manual VR Adjustment | 4 | DC 1.2~6V | 15W | 1.5A/CH，Total 2.6A |
PV12M4C |
Manual VR Adjustment | 4 | DC 1.2~6V | 28W | 1.5A/CH，Total 2.6A |
PV24M4C |
Manual VR Adjustment | 4 | DC 1.2~6V | 62W | 1.5A/CH，Total 2.6A |
PV6M6C |
Manual VR Adjustment | 6 | DC 1.2~6V | 15W | 1.5A/CH，Total 2.6A |
PV12M6C |
Manual VR Adjustment | 6 | DC 1.2~6V | 28W | 1.5A/CH，Total 2.6A |
PV24M6C |
Manual VR Adjustment | 6 | DC 1.2~6V | 62W | 1.5A/CH，Total 2.6A |
Note:
