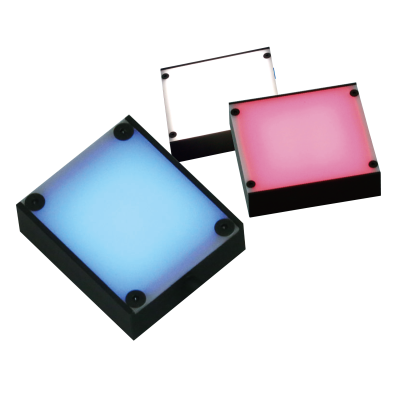

BL-Back Lights
Product Features
- Available in standard and high-brightness versions based on needs.
- Stable output of uniform diffused light, maintaining low temperature and long life.
- Thickness available in standard 25mm and thin 13mm (high brightness).
- Various sizes and colors available, customization supported.
- Hollow backlight can be used as front lighting (replacing ring lights), providing high brightness and high uniformity.
Applications
- Alignment inspection of transparent objects and glass substrates.
- Standard alignment or shape recognition of general objects.
- Dimension, drill bit, and pinhole detection.
- Edge inspection, surface scratch detection on glass or glossy materials.
Model Description
Product Specification Table
| Model | Color | Light Area | Power Consumption |
|---|---|---|---|
BL-3030 |
33x31 | ||
BL-6060 |
60x60 | ||
BL-8080 |
86x84 | ||
BL-100100 |
114x114 | ||
BL-150150 |
174x159 | ||
BL-200200 |
214x204 | ||
BL-20050 |
200x50 | ||
BL-30050 |
300x50 | ||
BL-320190 |
320x190 | ||
BL-320260 |
320x260 | ||
BL-40050 |
400x43 | ||
BL-400300 |
400x300 | ||
BL-400400 |
428x408 | ||
BL-440152 |
440x152 | ||
BL-490190 |
490x190 | ||
BL-110110-10C |
110x110 (開10mm圓孔) | ||
BL-140140-60S |
140x140 (開60x60mm方孔) | ||
BL-200200-35S |
200x200 (開35x35mm方孔) | ||
BL-210210-85S |
210x210 (開85x85mm方孔) |
Note:
White
Red
Blue
Green
Orange
850nm Infrared
940nm Infrared
UV400nm
UV365nm
