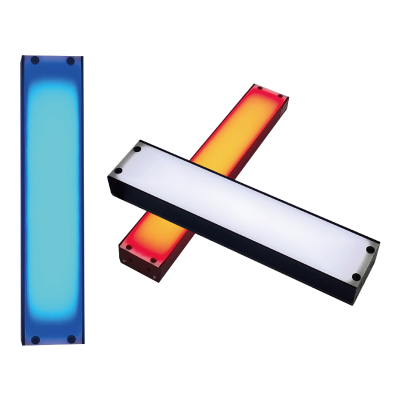

LL-Line Lights
Product Features
- Can produce side lighting, oblique lighting, and direct lighting effects depending on the mounting method.
- Uses densely arranged high-brightness LEDs for a narrow and long lighting range.
- Can act as a long backlight or produce more uniform light with a diffuser plate.
- Various emitting sizes available, customization supported.
- Heat sinks or parallel light films can be added to effectively increase brightness by 2 to 3 times.
Applications
- General illumination, label inspection, printing inspection, and barcode reading.
- Edge inspection, surface scratch detection on glass or glossy materials.
- Stain and particle detection.
- Light source for AOI automatic inspection systems.
Model Description
Product Specification Table
| Model | Color | Light Area | Power Consumption |
|---|---|---|---|
LL-3015 |
30x15 | ||
LL-5015 |
55x15 | ||
LL-5030 |
55x30 | ||
LL-6530 |
68x30 | ||
LL-10015 |
110x15 | ||
LL-10030 |
110x30 | ||
LL-15015 |
150x15 | ||
LL-15030 |
150x30 | ||
LL-20015 |
200x15 | ||
LL-20030 |
200x30 | ||
LL-27015 |
270x15 | ||
LL-27030 |
270x30 | ||
LL-30015 |
300x15 | ||
LL-30030 |
300x30 | ||
LL-40030 |
400x30 | ||
LL-43515 |
435x15 | ||
LL-46030 |
460x30 | ||
LL-50030 |
500x30 | ||
LL-60030 |
600x30 | ||
LL-65030 |
650x30 | ||
LL-70030 |
700x30 | ||
LL-80015 |
800x15 | ||
LL-100015 |
1000x15 | ||
LL-125015 |
1250x15 | ||
LL-150030 |
1500x30 | ||
LL-200030 |
1970x30 |
Note:
White
Red
Blue
Green
Orange
850nm Infrared
940nm Infrared
UV400nm
UV365nm
