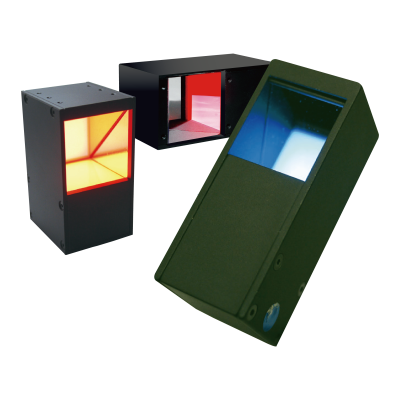

CL-Coaxial Lights

Product Features

• Illumination ranges include 25x25, 50x50, 100x100, and customized sizes.
• High transmittance multi-layer coated lenses protect the beam splitter; dust is easy to clean, suitable for long-term use.
• Built-in continuous brightness adjustment (selected models).
• Can be used for continuous or strobe lighting control with VISWELL controllers.
• 90-degree angle coaxial version diverts light path by 90 degrees, suitable for side lighting.
• Parallel coaxial version suitable for detecting surface unevenness, indentations, and scratches.

Applications

• Eliminates reflections or glare spots, best for detecting features or defects on mirror-like reflective objects.
• Suitable for high-reflection objects like PCB bare boards, film alignment, mark recognition, and defect inspection.
• Scratch, dent, or mark recognition on glass, coated, or metal surfaces.
• Wafer or panel industry finished products, glass substrates, filter alignment, and defect inspection.
