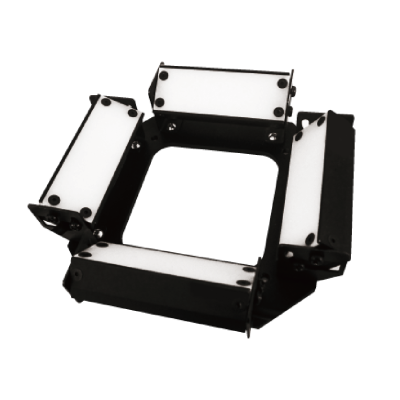

SLL-Adjustable Square Lights
Product Features
- Special high-brightness design shortens camera exposure time, suitable for high-speed line inspection.
- Adjustable angle: Provides 0~90 degree illumination angle, adaptable to different test objects and working distances.
- Diffuser plate can be added for more uniform inspection lighting.
- Customized light sources available.
- Heat sinks can be added to double the brightness.
Applications
- Surface printing, solder distribution, IC pin deviation, and PC board missing component detection.
- Scratch and particle detection on glass substrates, lenses, or wafers.
Model Description
Product Specification Table
| Model | Color | Light Area | Power Consumption |
|---|---|---|---|
SLL-5015 |
55x15 | ||
SLL-5030 |
55x30 | ||
SLL-10015 |
110x15 | ||
SLL-10030 |
110x30 | ||
SLL-15015 |
150x15 | ||
SLL-15030 |
150x30 | ||
SLL-20015 |
200x15 | ||
SLL-20030 |
200x30 | ||
SLL-27015 |
270x15 | ||
SLL-33015 |
330x15 | ||
SLL-41015 |
410x15 |
Note:
White
Red
Blue
Green
850nm Infrared
940nm Infrared
UV400nm
