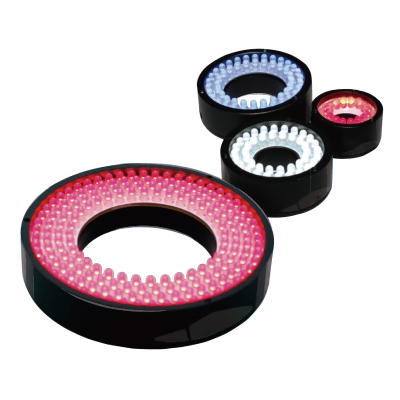

RL-Ring Lights

Effective working distance from 10~150mm depending on light source type and angle characteristics.
Ring lights composed of one or more LED circles based on brightness requirements.
With a diffuser plate, it is suitable for reflective or non-reflective workpiece inspection.
Can be used for continuous or strobe lighting with VISWELL dimmers.
Assembled with flexible circuit boards, can be accurately made into ring light sources of any angle and size. Increases brightness and eliminates lighting dead corners.
Various sizes or customized light sources are available.

Model Description

Product Specification Table

Model	Color	Angle	Inner/Outer Diameter	Power Consumption	Recommended Working Distance
RL-1643		Vertical Angle	16/43	24V/2.9W	6 - 35
		Low Angle	16/43		6 - 35
		High Angle	16/43		15 - 45
RL-2850		Vertical Angle	28/50	24V/3.7W 24V/3.8W	6 - 35
		Low Angle	28/50		10 - 30
		High Angle	28/50		25 - 45
RL-2348		Horizontal Angle	23/48	24V/3.9W 24V/2.5W	0 - 10
RL-3667		Vertical Angle	36/67	24V/6.9W 24V/17.3W	30 - 100
		Low Angle	36/67		10 - 30
		High Angle	36/67		25 - 80
RL-3667-ACD				0.96W
RL-4070		Horizontal Angle	40/70	24V/11.8W 24V/7.6W	0-10
RL-5090		Vertical Angle	50/90	24V/10.1W 24V/14.4W	60 - 100
		Low Angle	50/90		20 - 40
		High Angle	50/90		20 - 40
RL-5790		Horizontal Angle	57/90	24V/7.9W 24V/5.0W	0 - 10
RL-70100		Horizontal Angle	70/100	24V/8.4W 24V/5.76W	0 - 10
RL-92122		Horizontal Angle	92/122	24V/8.6W 24V/5.76W	0 - 10
HRL-3080		High Angle	30/80	24/24W	60
HRL-50142				24/33.6W 24/24W
AL-50132				From top to bottom (5 angles): Outer Coaxial 5
AL-75170				From top to bottom (8 angles): Outer Coaxial 8
RL-1643-DIF	-
RL-2850-DIF	-
RL-3667-DIF	-
RL-5090-DIF	-

Note:

White

Red

Blue

Green

850nm Infrared

940nm Infrared

UV400nm

UV365nm

RGBW
