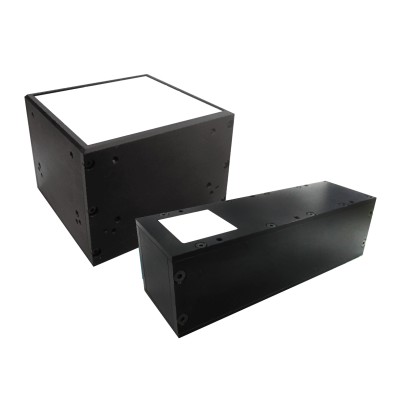

CBL-Collimated Back Lights
Product Features
- Uses precise optical path design to emit near-ideal parallel light, improving dimension measurement accuracy compared to general backlights.
- Improves diffusion phenomena of general light sources; clearly presents the outer contour of the test object.
Applications
- High precision, mechanical part dimension measurement, or detection of minute defects.
- Electronic component contour detection.
- Screw and nut dimension detection, glass bottle defect and scratch detection.

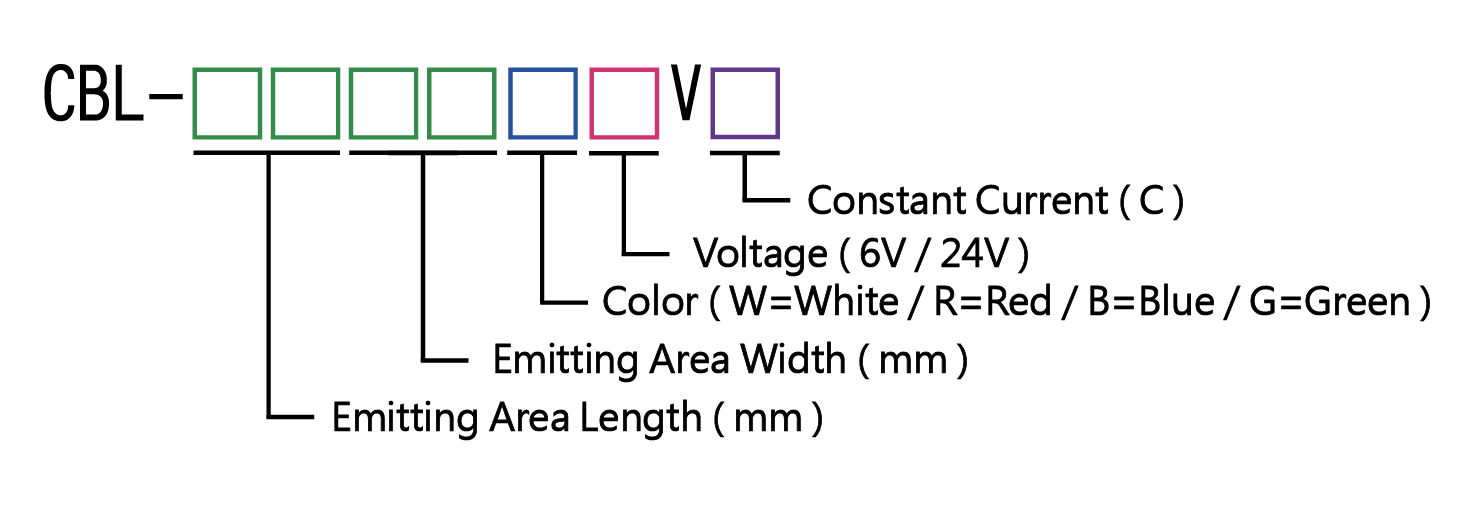

Model Description
Product Specification Table
| Model | Color | Light Area | Power Consumption | Recommended Working Distance |
|---|---|---|---|---|
CBL-3030 |
30x30 | 24V/9.6W | ||
CBL-60 |
Φ60 | 6V/8.4W | ||
| Φ60 | 6V/6W | |||
CBL-9595 |
95x95 | 6V/8.4W | ||
| 95x95 | 6V/6W | |||
CBL-180180 |
180x180 | 6V/8.4W | ||
| 180x180 | 6V/6W |
Note:
White
Red
Blue
Green
